Heat Recovery Steam Generators (HRSGs)

CONSORCIO INDUSTRIAL^® offers full-integrated fabrication services for Heat Recovery Steam Generators (HRSGs) for large combined cycle power plants to small co-generation and industrial facilities. We count with a specialized & dedicated staff and a workshop infrastructure to accomplish large-scale fabrication projects, including, steam drums, individual harps to total modularized HRSGs assemblies.

We offer in-house capabilities for:

Large-scale pressure parts machining and drilling for welding
Harps assembly
Carbon & alloy steel welding procedures (see materials below)
NDT services
PWHT stations
Hydrotesting and drying stations
Non-pressure parts fabrication (casings, chimneys, etc.)
Full modules assembly
Piping spool fabrication
Steam drums fabrication

Our HRSGs team and fabrication staff has developed complete execution procedures in accordance with international requirements, which allow us to comply with the most demanding customer´s specifications.

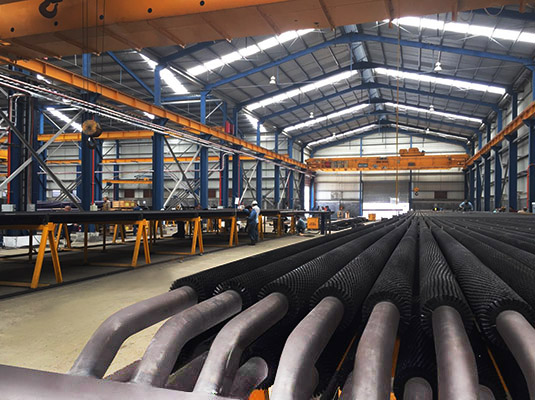

HRSGs FABRICATION BAY

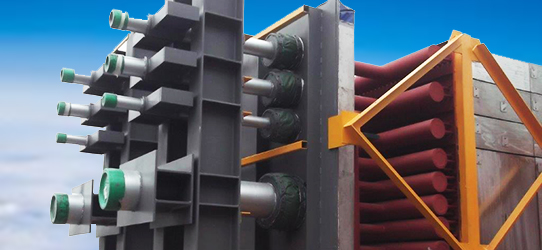

HARPS FABRICATION

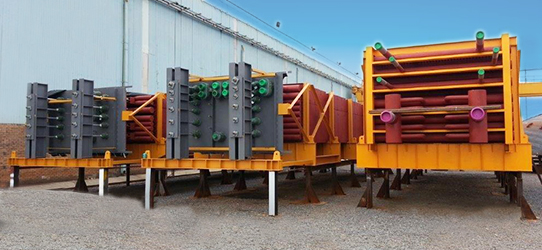

HRSGs MODULES FOR A COGENERATION PLANT, ALTAMIRA, MEXICO

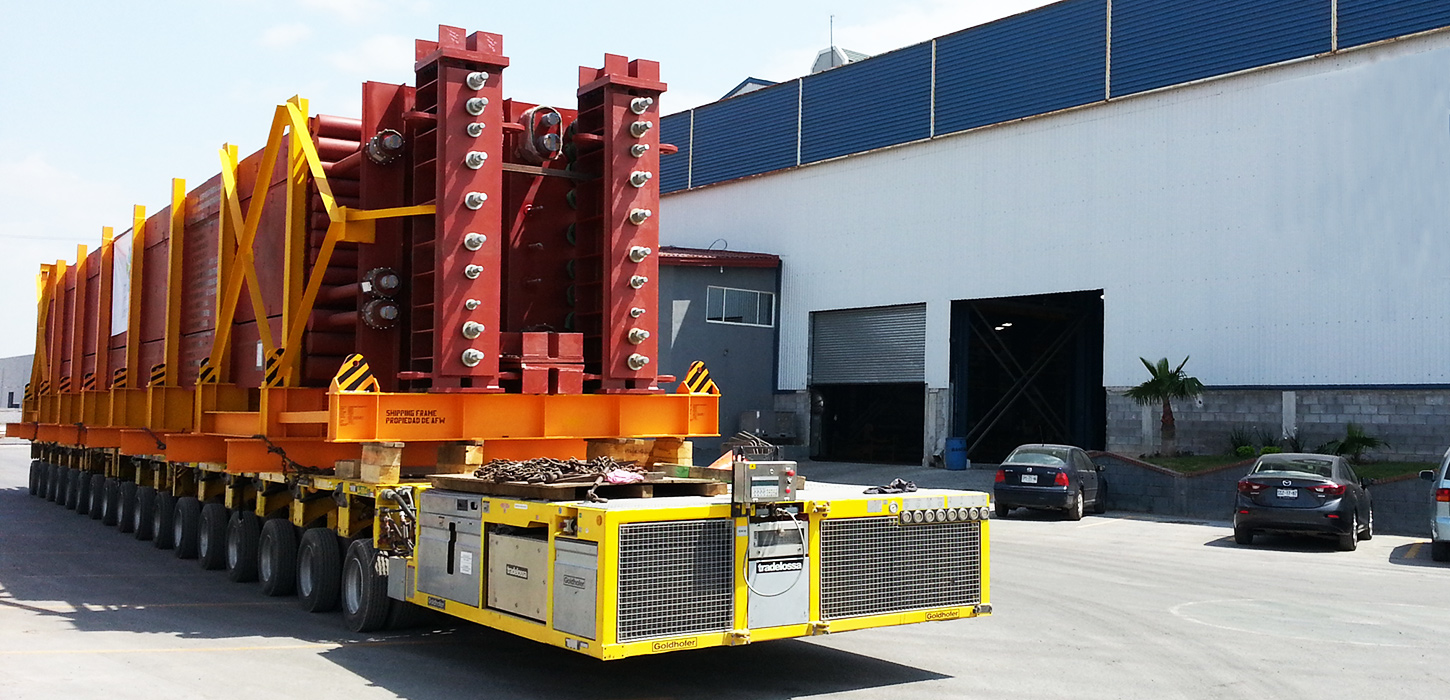

HRSG MODULE FOR COMBINED CYCLE PLANT, IBERDROLA

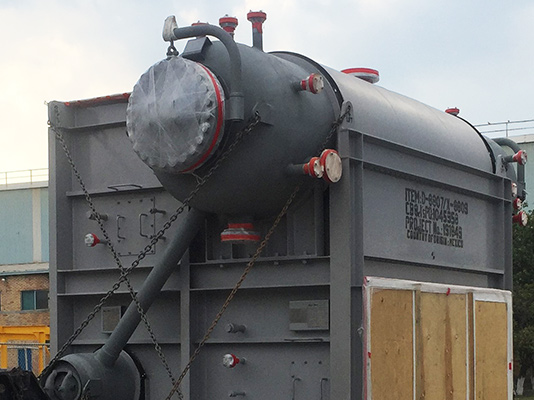

WASTE HEAT RECOVERY UNIT, CB&I GREYROCK WHB, USA

Commonly used materials

CONSORCIO INDUSTRIAL^® has fabricated HRSG´s harps, modules or sub-components from any of the following main materials:

TUBES	PIPES	PLATES
SA-192	SA-106-B/C	SA-516-Gr70
SA-201-A1		SA-299
SA-213-T11	SA-335-P11	SA-387-Gr11
SA-213-T22	SA-335-P22	SA-387-Gr22
SA-213-T91	SA-335-P91	SA-387-Gr91
SA-213-321	SA-312-316	SA-240-321
SA-213-304H	SA-312-304H	SA-240-321

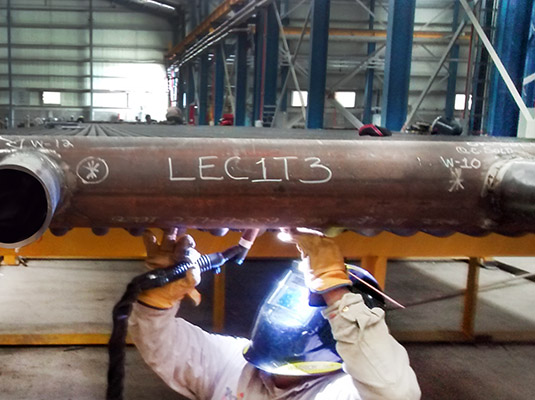

Our welders are trained and qualified in different processes, such as SAW, GTAW, SMAW, FCAW and others, as required.
